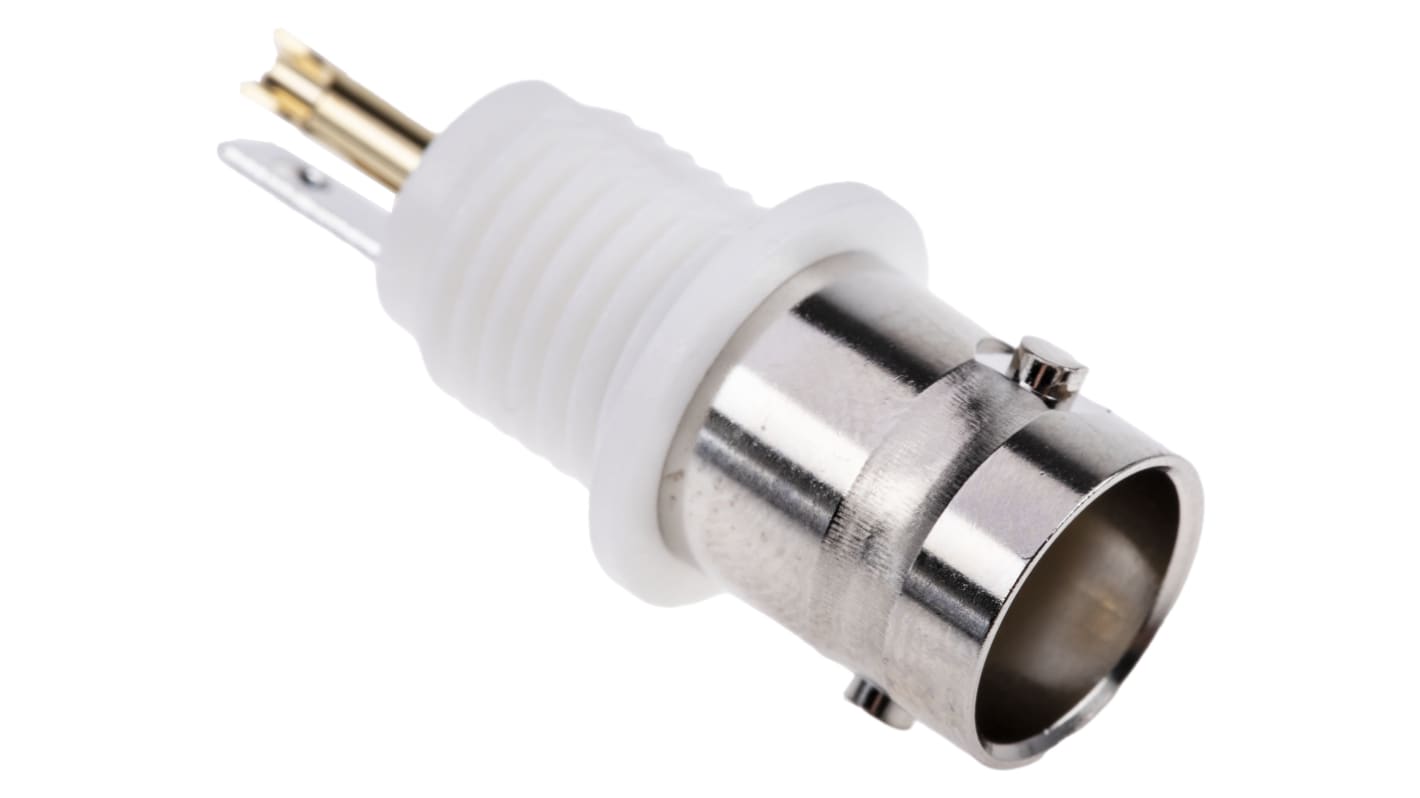

RS PRO 50ΩBNC连接器母头 同轴连接器, 面板安装, 焊接端接, 直向

该BNC同轴连接器由RS PRO专门设计用于同轴电缆，并具有用于安装到面板和机箱上的隔板和螺帽。

该连接器具有坚固的镀镍主体，并具有BNC连接器特有的安全、方便的卡口连接系统。中心引脚触点为镀金，可在较长的使用寿命内提供出色的导电性，还具有 ABS 绝缘体，以提高可靠性。

特性和优势

• BNC 连接器
• 镀镍主体提供坚固的结构质量
• 镀金触点可确保最高效率
• 焊接片端接方法
• 50Ω阻抗
• 工作频率为4GHz
• 绝缘材料：ABS

应用

BNC 连接器用于各种射频信号应用。虽然它们最常用于无线电和电视广播应用，但也可用于医疗和测试设备。

• 天线连接
• 电缆调制解调器
• 电信
• 医疗设备
• 卫星通信
• CCTV

常见问题

问：如何将BNC连接器连接到同轴电缆？

答：此BNC连接器带有一个焊片接头，可实现安全、持久的连接。端接此连接器需要焊接套件。

为什么选择 RS PRO？

RS PRO 是我们的自有品牌系列，为您提供种类繁多的高品质、高价值产品，让您有更多选择。深受全球工程师的信赖，RS PRO 产品的每个部件都经过严格的行业标准测试；只有达到我们高标准的产品才会获得 RS PRO 批准印章，这意味着您可以放心使用。

For simple and efficient coaxial cable connections, turn to this female BNC connector from RS PRO. Often used in video equipment, this BNC connector has a secure bayonet coupling system that's quick to connect. Just twist and wait for the 'snap' noise to confirm that the wires are connected.

This BNC connector's nickel-plated brass body resists corrosion, while a gold-plated centre contact offers reliable long-term conductivity. This bulkhead connector has a straight body for fuss-free panel mounting, and the wire terminations can be soldered. For versatility, it has an impedance of 50 Ω and operates within a temperature range of -40°C to +60°C. As it's part of the RS PRO range, this connector has been stringently tested. It also meets RoHS (Restriction of Hazardous Substances) and electrostatic control standards.

In addition to its use in video signalling, this BNC connector is frequently found in industrial testing equipment such as audio generators and oscilloscopes.

• Female BNC connector
• Body, nut and washer made from nickel-plated brass and thermoplastic polymer (ABS)
• Straight body orientation
• Bulkhead fitting for panel mount
• Gold contact plating
• Impedance of 50 Ω
• Operating Frequency of 4 GHz
• Normal polarity
• Soldered termination
• RoHS (Restriction of Hazardous Substances) compliant
• Minimum operating temperature of -40°C
• Maximum operating temperature of +60°C

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

N/A

RS BNC 连接器

RS BNC 连接器，适用于各种应用，包括视频信号传输和测试设备。
