产品详细信息

通过选择一个或多个属性来查找类似产品。

选择全部	属性	值
	品牌	onsemi
	最大输入电压	10 V
	安装类型	通孔
	引脚数目	7
	尺寸	10.16 x 7.11 x 4.95mm
	最大输出电流	400mA
	封装类型	PDIP
	输入电压范围	-0.3 → 10 V
	最小输入电压	-0.3 V
	最高工作温度	+150 °C
	长度	10.16mm
	宽度	7.11mm
	高度	4.95mm
	输出电流范围	400 mA
	工作温度范围	最高 +150°C

	选择全部
	品牌 onsemi
	最大输入电压 10 V
	安装类型通孔
	引脚数目 7
	尺寸 10.16 x 7.11 x 4.95mm
	最大输出电流 400mA
	封装类型 PDIP
	输入电压范围 -0.3 → 10 V
	最小输入电压 -0.3 V
	最高工作温度 +150 °C
	长度 10.16mm
	宽度 7.11mm
	高度 4.95mm
	输出电流范围 400 mA
	工作温度范围最高 +150°C

COO (Country of Origin):: CN

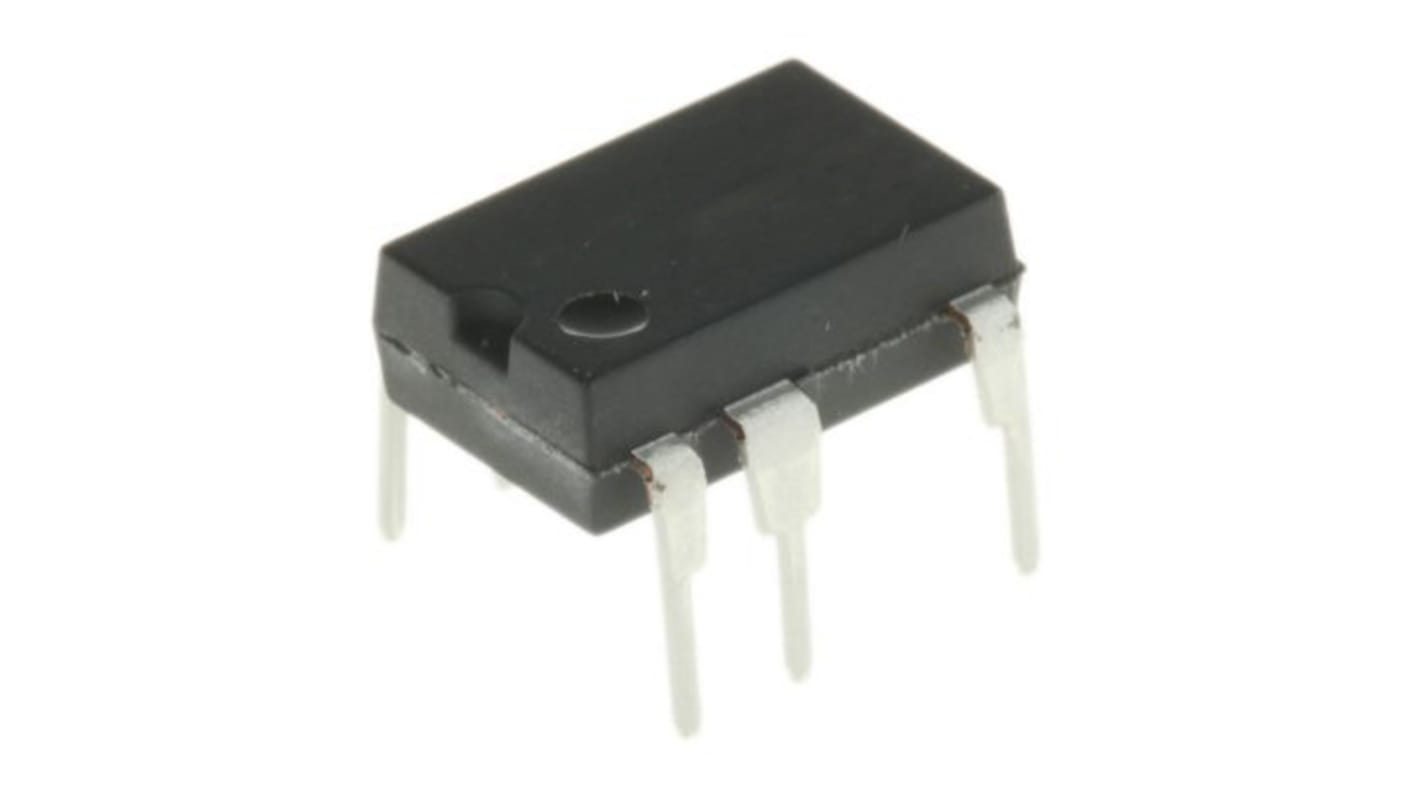

The NCP1075A & NCP1075B products integrate a fixed frequency current mode controller with a 700 V MOSFET. Available in a two different pin out of the very common PDIP 7 package, it offers a high level of integration, including soft start, frequency jittering, short circuit protection, skip cycle, a maximum peak current set point, ramp compensation, and a dynamic self supply (DSS, eliminating the need for an auxiliary winding).

Up to 20W output SMPS design capability
Ability to scale for efficiency or size
Adjust output current protection based on output power demand
Eliminate acoustic noise
Eliminate Aux winding
Provides more robust protection without worrying about the coupling of the aux winding
Improved efficiency at light load / Improved EMI over the entire load
<50mW no Load Power Consumption
Better EMI Signature Over the Entire Operating Range
Enhanced Protection Against too Low or too High Input Voltage

安森美 7引脚A/D转换器, 通孔安装, 最大输入电压 10 V, PDIP封装
