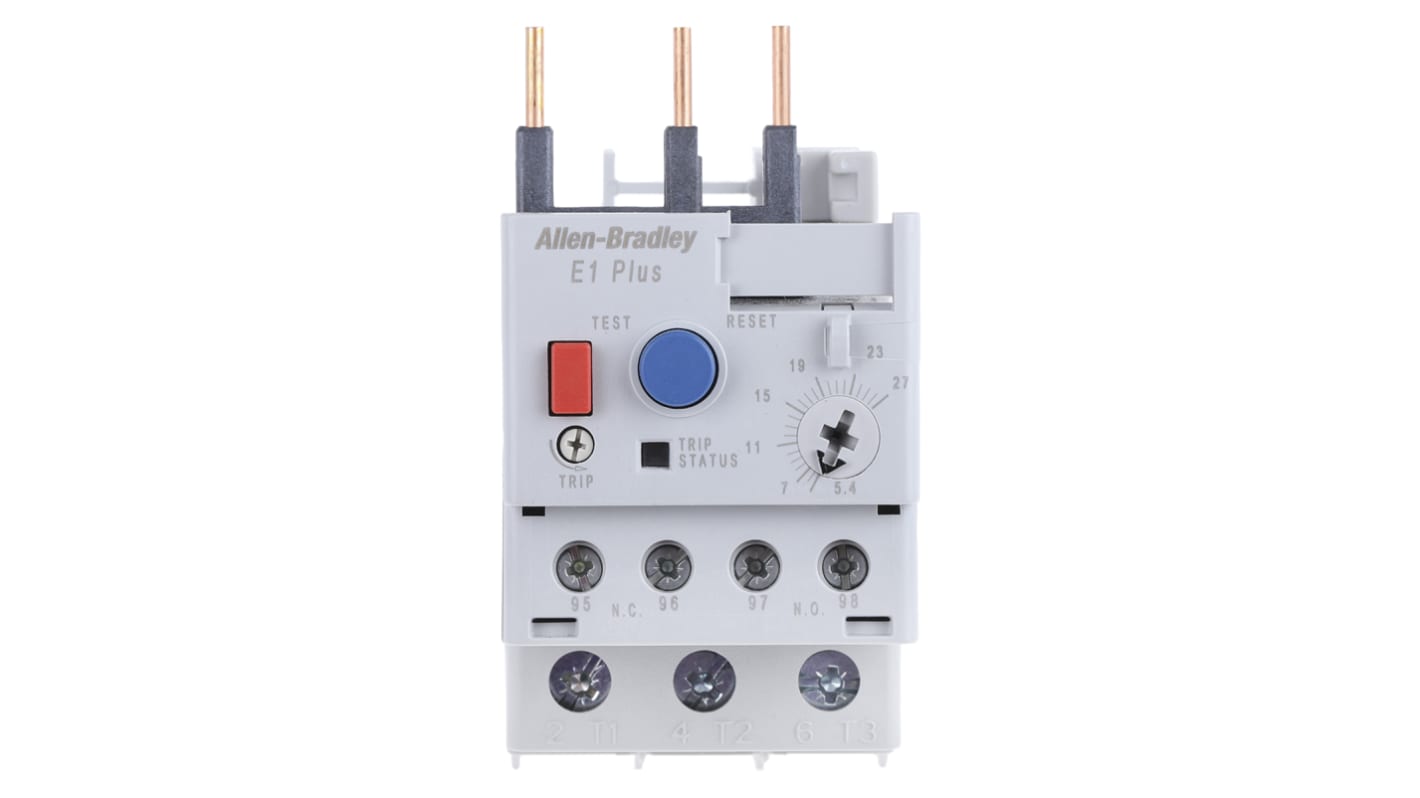

Allen Bradley 150 mW 手动复位 电子过载继电器, 27A, 5.4 A, 1 常开 /1 常闭, 控制电压690V 交流 193-E1 Plus系列

查看所有热继电器
暂时无法供应
我们不知道此物品是否会再来货，RS 不再对该产品备货。
RS 库存编号:
527-3663
制造商零件编号:
193-ED1EB
制造商:
Allen Bradley
通过选择一个或多个属性来查找类似产品。
选择全部

品牌

Allen Bradley

额定功率

150 mW

复位方法

手动

产品类型

电子过载继电器

FLC 电动机额定值

27 A, 5.4 A

正常状态配置

1 常开 /1 常闭

控制

690 V 交流

系列

193-E1 Plus

深度

85.2 mm

长度

146.6 mm

最高工作温度

60 °C

最低工作温度

20 °C

辅助触点数

2

接端类型

螺钉

宽度

45 mm

豁免

COO (Country of Origin):
MX

193-E1 Plus Electronic Overload Relays


The solid-state design of the 193-E1 Plus overload relay provides accurate, reliable and repeatable protection. A wide 5:1 adjustment range, dip switch (on EE versions) and isolated contacts provide application flexibility. The line-side over moulded power connections provides a sturdy two component starter assembly. The patented modular design allows for easy expansion of capabilities through side mount accessory modules to the EE versions.

Features and Benefits


IEC and NEMA configurations

Self-powered

Phase loss protection

Wide 5:1 adjustment range

Over-moulded power connections

1 N.O. and 1 N.C. isolated auxiliary contacts (AC15/B600 rated)

3 phase

Low energy consumption (150 mW)

Ambient temperature compensation

Visible trip indication

Compatible with 100-C09 to 100-C85 contactors (see stock no. 238-0702 typically)

ED Version


0.2 A to 27 A current range

Fixed trip class 10

Manual reset

EE Version


0.1 A to 90 A current range

Selectable trip class (10, 15, 20 or 30)

Selectable manual/auto-manual reset

Optional cage clamp control terminals

Approvals

UL, CSA.

Standards

IEC EN60947-4-1, EN60947-5-1.
