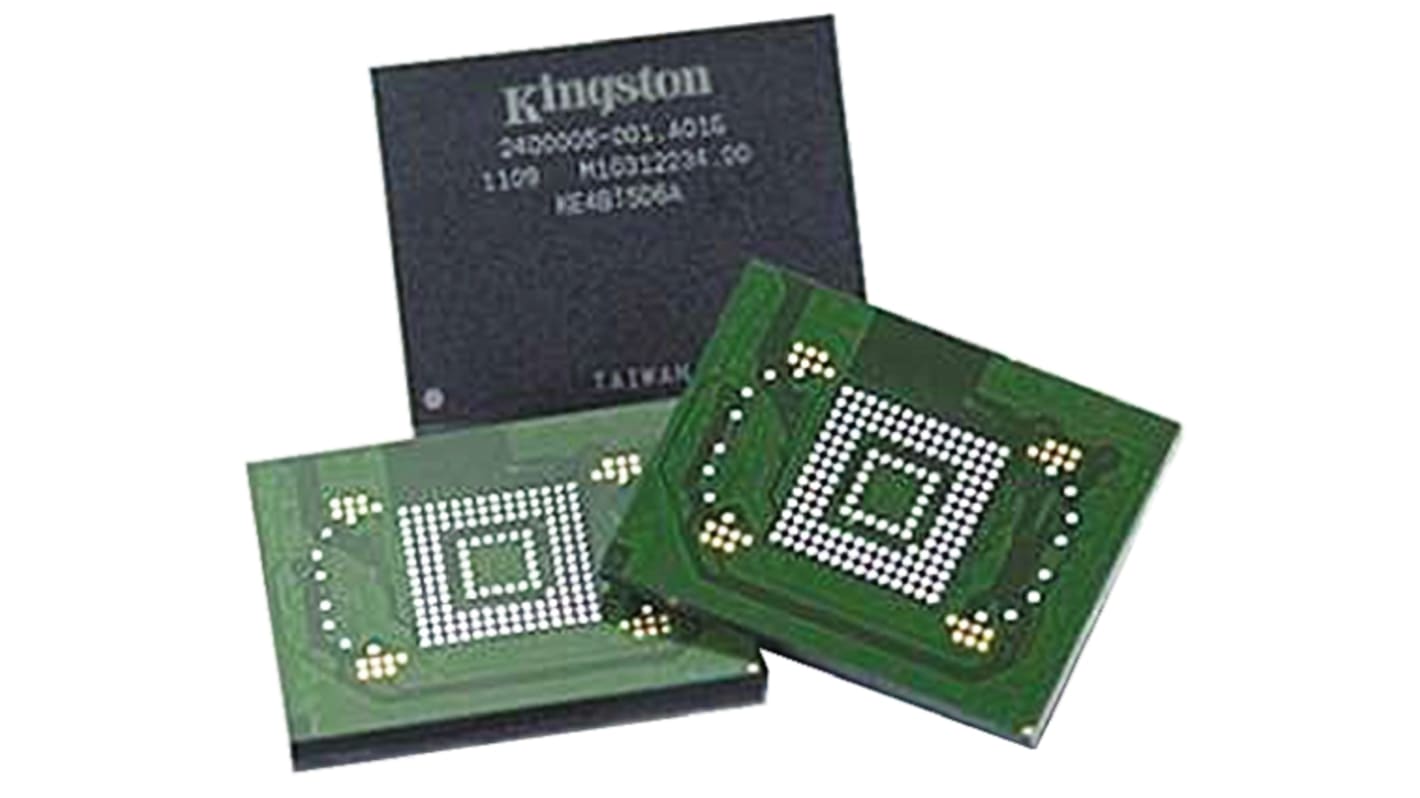

Kingston NAND闪存芯片, 16GByte, eMMC接口, FBGA, 169针→3.3 V, 16G x 1 bit, 16G x 4 bit, 16G x 8 bit

这些由 Kingston 制造的 32nm 闪存 eMMC 设备，符合 JEDEC eMMC4.41 标准，将 NAND 闪存和 MMC 控制器结合在一个 JEDEC 标准封装内。 该微控制器接口带有主机系统，允许从 NAND 闪存读写数据，且该控制器允许主机独立于闪存的擦除和编程细节。 凭借其小巧的尺寸和低功率消耗，闪存 eMMC 特别适合用作通用储存解决方案，用于多种电子设备，包括智能手机、平板电脑、PDA、eBook 阅读器、MID、数码相机和记录器、MP3、MP4 播放器、数字电视和机顶盒；以及嵌入式应用，如多种计算机模块 (COM) 设计。

遵循 Jedec 规格 4.41（JEDEC 标准规格编号 JESD84‐A4411）而设计
湿度敏感性等级 3 (MSL 3)
启动操作模式
增强的写入保护，带有永久和部分保护选项
安全的擦除、微调和不良块擦除命令
支持后台操作和高优先级中断 (HPI)DDR
接口
睡眠模式以省电
分区
硬件重置

Flash eMMC

eMMC (embedded Multi-Media-Card) are low-profile high-density non-volatile data storage devices designed specifically for end products which need reliable data storage with low processor overhead. Although originally intended for consumer devices and designed to operate with voltages as low as 1.7V, eMMC Flash memory devices are finding applications in industrial, scientific and medical devices, especially hand-held, battery-operated or space-constrained devices. The low processor overhead frees up MCU resources making eMMC Flash memory suitable for embedded computing applications.

Based on the MMC Interface (eMMC is a trademark of the MultiMediaCard Association) Embedded, non-volatile memory system, comprised of both flash memory and a flash memory controller: ECC (Error Checking and Correcting) and Wear-leveling
Simplifies the application interface design and qualification through reduction in time-to-market and support for future flash device offerings
Frees the host processor from low-level flash memory management
Small BGA package
Specifications are managed by JEDEC
