RS PRO 2.54mm间距16p2排IDC连接器公插, 通孔安装
- RS 库存编号:
- 284-6502
- 制造商:
- RS PRO
可享批量折扣
单价（不含税） 个*
RMB10.56
(不含税)
RMB11.93
(含税)
现货库存，可于8工作日发货。
单位 | 每单位 |
|---|---|
| 1 - 4 | RMB10.56 |
| 5 - 9 | RMB9.38 |
| 10 + | RMB8.39 |
* 参考价格
- RS 库存编号:
- 284-6502
- 制造商:
- RS PRO
- COO (Country of Origin):
- CN

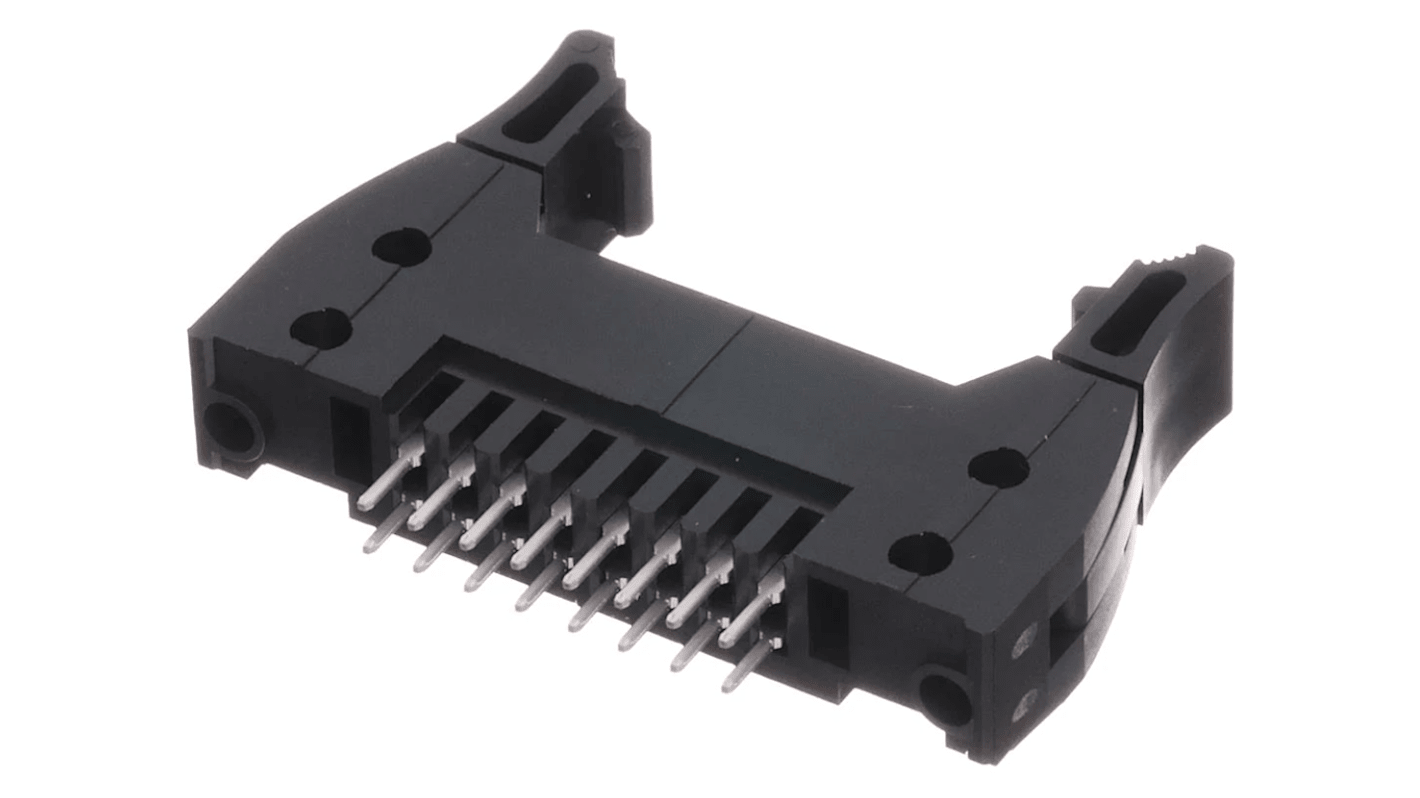

RS PRO 黑色 16 路 IDC 连接器插头
A durable 16 way IDC connector featuring long locks and straight DIP terminals for wire to board connection. Designed for through hole mounting with a 2.54mm pitch for the connection of ribbon cable.
The 16 way IDC plug features 2 rows of contacts constructed from hardwearing Brass providing excellent wear resistance protecting against breaks from repeated insertions with a Gold flash coating for a high level of conductivity contained within a hardwearing PBT housing.
Reliable and hardwearing with a simple long latch ejection system the IDC connector is ideal for relaying applications.
特点和优点
Black IDC connector plug
16 way/ 2 rows
Voltage rating of 250V
2.54mm pitch
Suitable for 2.54mm pitch ribbon cable
Contact resistance of 20MΩ
Insulation resistance of 1000MΩ
Long latch ejection
DIP terminals
Through mount design
Dimensions of 39.62. x 8.4mm
为什么选择 RS PRO？
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
属性 | 数值 |
|---|---|
| 触点数目 | 16 |
| 行数 | 2 |
| 性别 | 公插 |
| 节距 | 2.54mm |
| 安装类型 | 通孔 |
| 主体定位 | 直向 |
| 端接方法 | IDC |
| 额定电流 | 3A |
| 触点电镀 | 镀金 |
| 最低工作温度 | -25°C |
| 最高工作温度 | +85°C |
| 额定电压 | 250V |
| 触点材料 | 黄铜 |
| 外壳材料 | 聚碳酸酯 (PBT) |
