Name: SICK 激光扫描仪 激光扫描仪, 最大扫描49 m, 螺钉接端 905 nm, 安全类型3 S3000系列
Brand: SICK
SKU: 271-568
Price: 44882.44 CNY
Availability: Discontinued

通过选择一个或多个属性来查找类似产品。

选择全部	属性	值
	品牌	SICK
	产品类型	激光扫描仪
	元件类型	激光扫描仪
	最大扫描距离	49 m
	接端类型	螺钉
	峰值波长	905 nm
	安全型	3
	系列	S3000
	危险区认证	否
	高度	185 mm
	长度	160 mm
	最大响应时间	60 ms
	最小扫描距离	10 m
	标准/认证	No
	宽度	155 mm

	选择全部
	品牌 SICK
	产品类型激光扫描仪
	元件类型激光扫描仪
	最大扫描距离 49 m
	接端类型螺钉
	峰值波长 905 nm
	安全型 3
	系列 S3000
	危险区认证否
	高度 185 mm
	长度 160 mm
	最大响应时间 60 ms
	最小扫描距离 10 m
	标准/认证 No
	宽度 155 mm

豁免

COO (Country of Origin):: DE

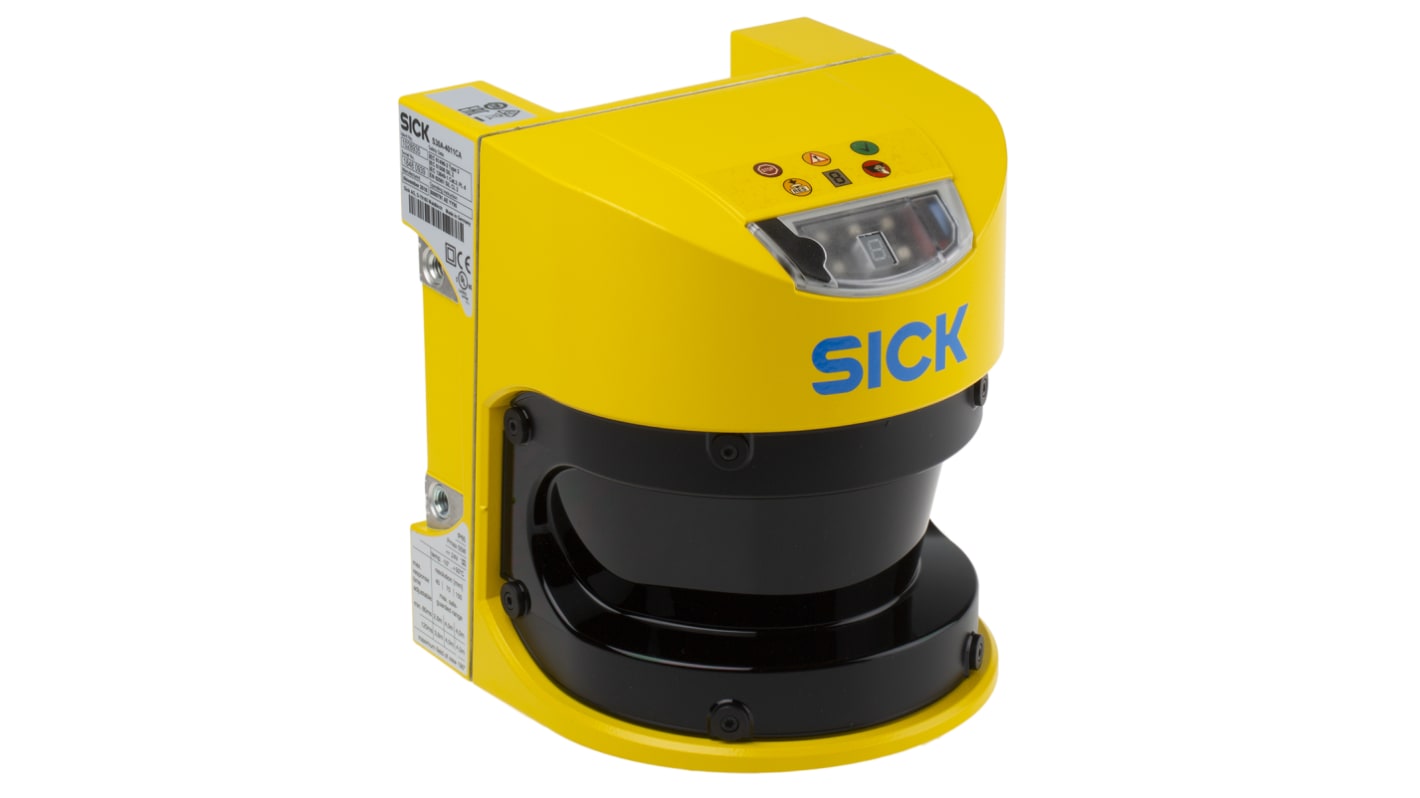

Sick S3000 - Advanced Safety Laser Scanner

SICK S300 Laser Scanner is a professional device that can be used for a wide range of applications such as protection of machines, operators and systems. A complete system guarantees safe and efficient operation and can mount both horizontally and vertically to protect hazardous areas, points and access points. SICK S3000 features a unique four zone protection system. All four protection zones and four warning fields are freely programmable using the software supplied with the device. This allows each laser scanner to be set up according to the unique requirements of each installation.

Features and Benefits:

• Simultaneous monitoring of 2 protection fields possible

• Modular concept allowing for expanding the systems

• Easy to install and easy to service

• Certified for vertical use for access control or entry/exit applications, as well as hand protection

• The selectable resolution makes it possible to adapt the devices

to a very wide range of application requirements

• Formation of host/guest system

• Plug and play for device exchange (program memory in connection plug)

• Short response time (60ms minimum)

• 190° Scanning window

• 4 m radius for the safety field

• 49 m warning field

• 2 OSSD safety outputs, 1 warning field output, 1 diagnostic output

• 2 Control inputs, 1 reset input, 1 EDM input

• IP 65 approved

Typical applications:

• Production lines,

• Machining centres,

• Entry/Exit stations,

• Robot Cells,

• Freely moving vehicles,

• Narrow corridor vehicles,

• Tube bending machines,

• Automotive Industry

• Area protection

Approvals & Certification:

• Laser Protection class: 1 (21 CFR 1040.10 and 1040.11, DIN EN 60825:2001)

• IP Rating: IP 65 (EN 60529)

• Protection class: 2 (DIN VDE 0160, DIN EN 50178)

• Type: Type 3 (IEC/EN 61496-3)

• Safety Integrity Level: SIL2 (IEC/EN 61508)

SICK S3000 accessories (available separately):

• The connection cable - 271-495

• A programming cable which connects S3000 to a PC via a serial interface for configuration - 271-580

• UE10 Interface relay - 271-502

Note:

Installation and operation of this safety device must be in strict accordance with accompanying operating instruction.

Laser Scanner

Warning

The manufacturer notifies that article: 271-568 (S30A-4011CA / 1028935) is being phased out. The closest replacement article is: 287-7936 (MICS3-CCAZ40AN1P01 / 1133818). Please refer to the Migration Guide document for full details.

SICK 激光扫描仪 激光扫描仪, 最大扫描49 m, 螺钉接端 905 nm, 安全类型3 S3000系列
