STMicroelectronics 单片机开发板, Isobuck Boost Converter Based

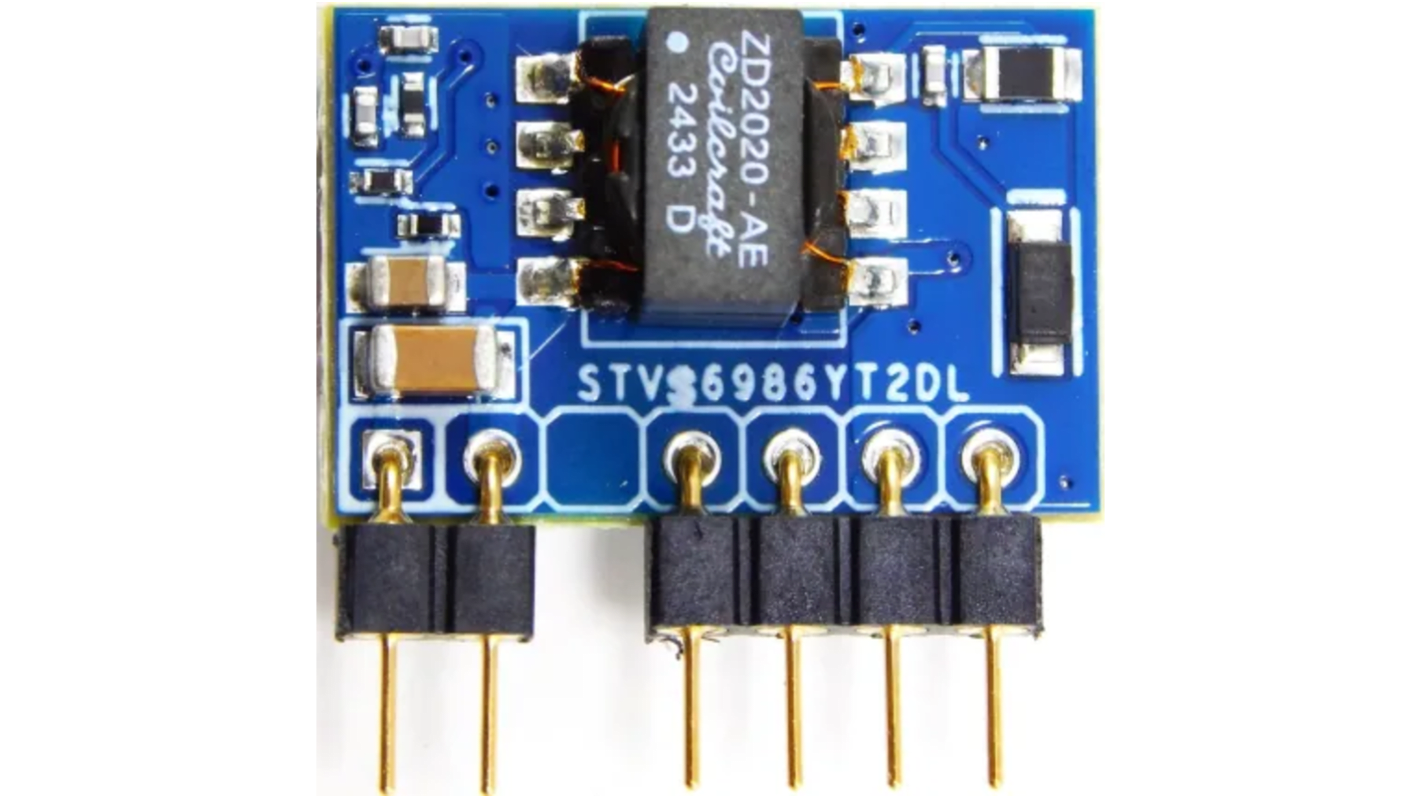

The STMicroelectronics Evaluation board is based on A6986I. The peculiarity of this board is its compatibility with a SIP7 module both in terms of pinout and concerning the size. Further flexibility is achieved by matching SIP7 modules with different output voltage pinouts. It works at 250 kHz switching frequency and embeds all the standard protections offered by the A6986I.

Isobuck boost topology
Protection against overvoltage
Protection against overcurrent and over temperature events
