Infineon 单片机开发板, DAP miniWiggler V3, KIT_MINIWIGGLER_3_USB
- RS 库存编号:
- 260-8614
- Distrelec 货号:
- 304-22-812
- 制造商零件编号:
- KITMINIWIGGLER3USBTOBO1
- 制造商:
- Infineon
单价 个/ 个*
RMB1,251.89
(不含税)
RMB1,414.64
(含税)
现货库存,可于8工作日发货。
实时库存查询
单位 | 每单位 |
---|---|
1 + | RMB1,251.89 |
* 参考价格
- RS 库存编号:
- 260-8614
- Distrelec 货号:
- 304-22-812
- 制造商零件编号:
- KITMINIWIGGLER3USBTOBO1
- 制造商:
- Infineon
- COO (Country of Origin):
- DE

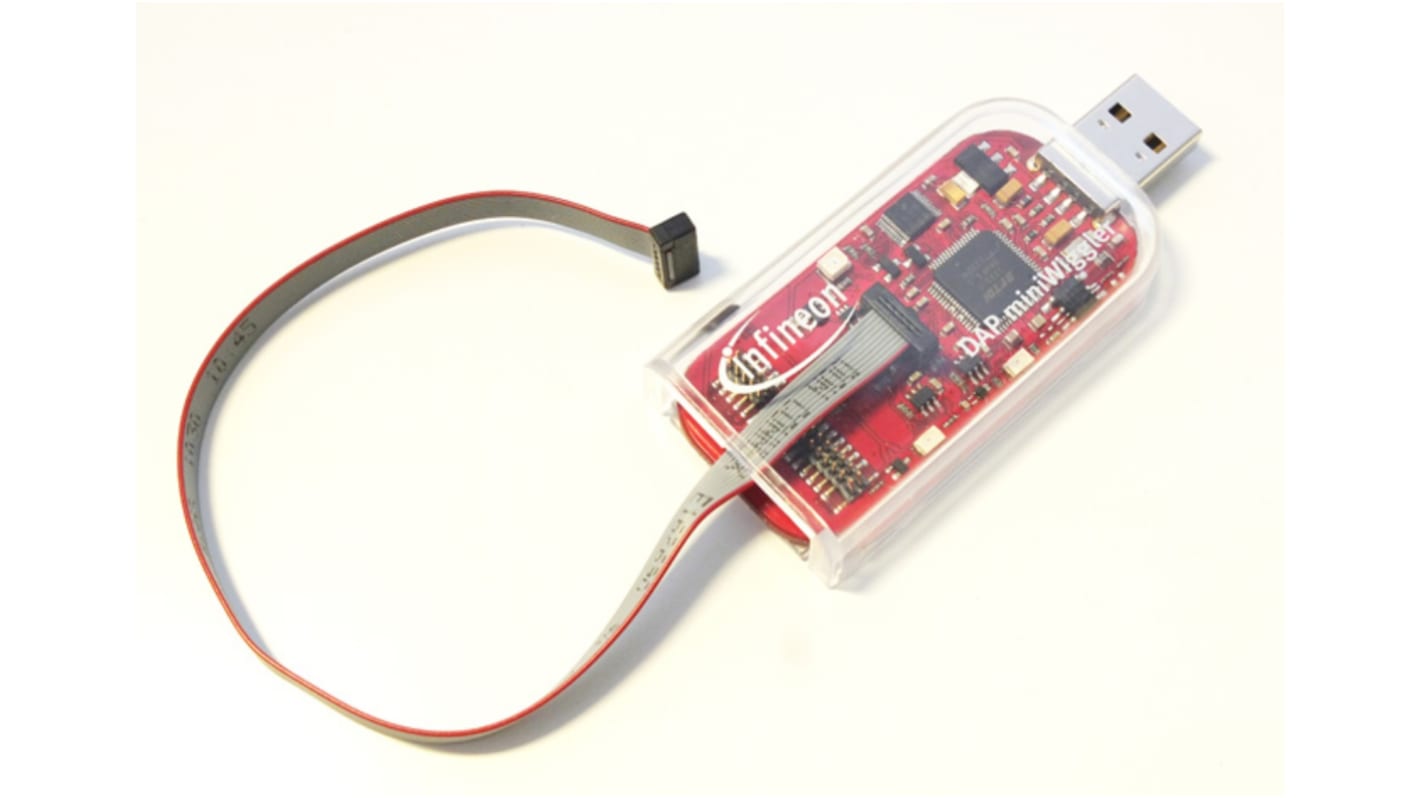

DAP miniWiggler V3
高性能和经济实惠的工具访问硬件:
DAP miniWiggler V3 是 DAP miniWiggler 的继任者。它将 PC/USB 转换为 Infineon 微控制器设备的调试接口(10 引脚 DAP/SPD/SWD、20 引脚汽车 JTAG)。工具的软件接口是 DAS (设备访问服务器) DLL。最新 DAS 版本可从 DAS - Infineon Technologies 下载。
应用和支持的工具:
DAP miniWiggler V3 是 DAP miniWiggler 的继任者。它将 PC/USB 转换为 Infineon 微控制器设备的调试接口(10 引脚 DAP/SPD/SWD、20 引脚汽车 JTAG)。工具的软件接口是 DAS (设备访问服务器) DLL。最新 DAS 版本可从 DAS - Infineon Technologies 下载。
应用和支持的工具:
- Infineon MemTool(工具和软件 -> “软件下载”)
- 调试,闪存编程
- 锂/任务编译器
- Infineon DAVETM 工作台
- Infineon DAVETM 3(工具和软件 -> “DAVETM (版本 3) – 传统 - xSPY 工具”)
- Hitex HiTOP 调试器
- ARM KEIL uVision
Features & Benefits
• Supports communication at 30MHz for enhanced speed
• Features a compact automotive JTAG connector for space-saving
• Integrates a strong pull-up for DAP hot attachment
• Provides a reset control function for reliable signal management
• Ensures compatibility with multiple protocols for broad use
• Features a compact automotive JTAG connector for space-saving
• Integrates a strong pull-up for DAP hot attachment
• Provides a reset control function for reliable signal management
• Ensures compatibility with multiple protocols for broad use
Applications
• Ideal for programming microcontrollers in automation systems
• Utilised for testing and prototyping in electronics projects
• Effective in educational environments for teaching programming
• Applicable in automotive electronics for control system development
• Useful in industrial automation for device communication
• Utilised for testing and prototyping in electronics projects
• Effective in educational environments for teaching programming
• Applicable in automotive electronics for control system development
• Useful in industrial automation for device communication
支持的微控制器设备:
AURIX、TriCore、XMC4000、XMC1000、XC2000、XE166、XC166、XC800
功能摘要
AURIX、TriCore、XMC4000、XMC1000、XC2000、XE166、XC166、XC800
功能摘要
- 时钟速率高达 30 MHz(可编程)
- 所有信号均为 5.5V,缩放至 1.65V
- USB 2.0(高速)
- 经认证的驱动器,用于 Microsoft Windows XP、VISTA、7 和 8
- USB、JTAG 和 DAP/SPD 热插头和卸载
- 3 个板载状态 LED
- 支持 10 引脚 DAP 连接器上的汽车 20 引脚 JTAG
- 添加用于前端扩展的连接器(例如用于电磁绝缘)
What advantages does the compact automotive JTAG connector provide?
The compact automotive JTAG connector facilitates a space-efficient design, making it suitable for applications with constrained physical layouts while maintaining compatibility with existing 20 pin automotive systems.
How does the high speed of 30MHz impact programming performance?
Operating at 30MHz significantly reduces programming times, allowing for quicker data transfers between the host computer and target devices, enhancing overall development efficiency.
What is the purpose of the integrated reset control function?
The reset control function ensures reliable operation by managing the target system's reset state, thus guaranteeing accurate system startup and functionality during testing or development phases.
Are there specific precautions when using both JTAG and DAP connections?
It is crucial to avoid connecting both JTAG and DAP cables to targets simultaneously, as this could damage the target or the development tool, ensuring safe usage in various applications.
该产品为定制化产品,不可取消或退货,并遵循RS销售条款和条件。
属性 | 数值 |
---|---|
分类 | 评估板 |
套件名称 | DAP miniWiggler V3, KIT_MINIWIGGLER_3_USB |
技术 | 程序编译器 |
