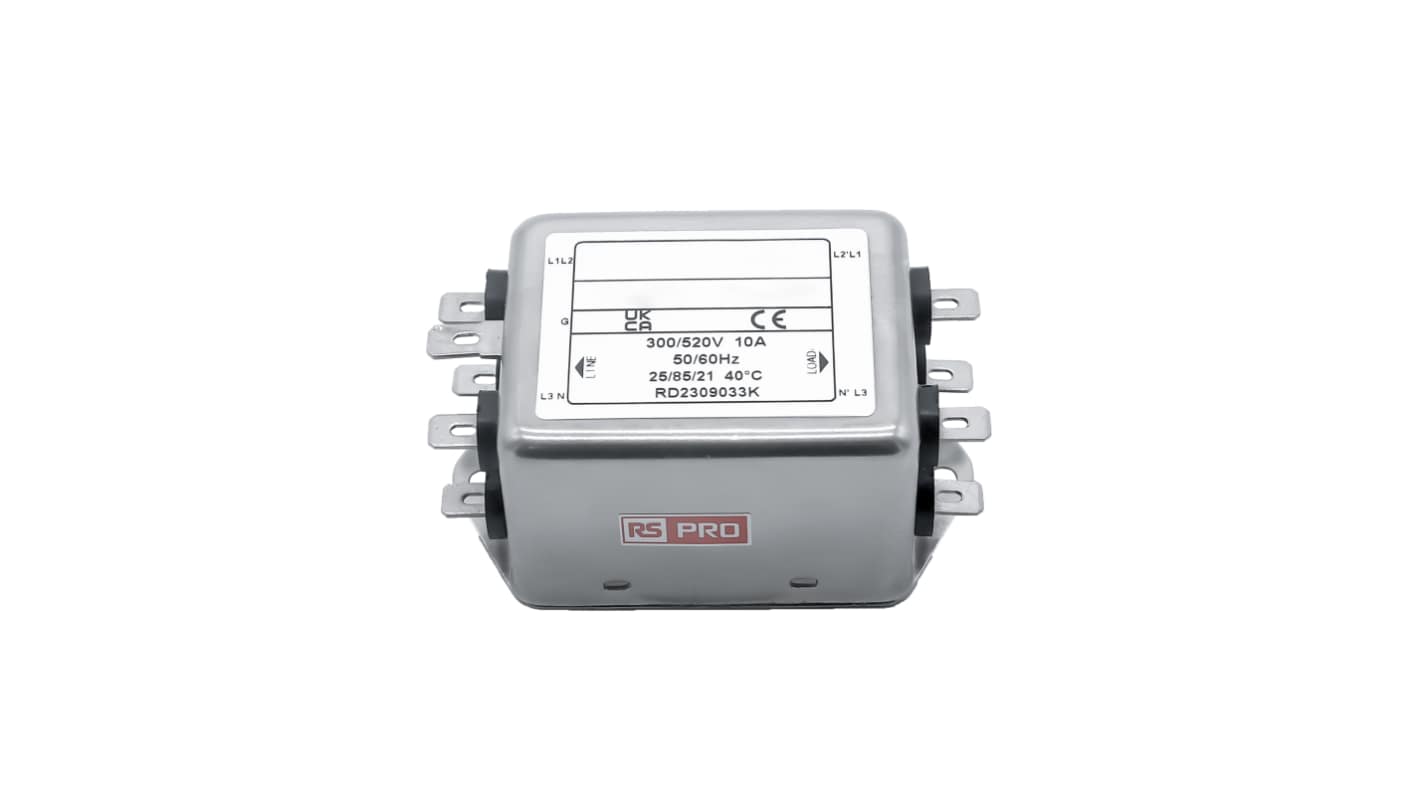

RS PRO 三相电源滤波器, 10A, 300/520 V 交流, 50 → 60Hz, 底盘安装, Fast-On接端, 一阶

Designed for chassis mounting and built to a compact size of 63 x 51 x 38mm the power line filter is ideal for areas with limited space and is easily connected using the 6.35 x 0.8mm fast on terminals.

Featuring an IP40 rating suitable for indoor use and a wide operating range of -25°C to 85°C the EMI power line filter is hardwearing and suitable for use with general electrical and electronic equipment, sensitive medical equipment, energy applications and communication equipment.

Current rated to 10A

Hipot Rating 2750vdc (line to ground), 2250Vdc (line to line), 1300Vdc (line to neutral)

IP40 rated

Dimensions of 63 x 51 x 38mm

75mm mounting hole spacing

6.35 x 0.8mm Fast on terminals

Weight of 350g
