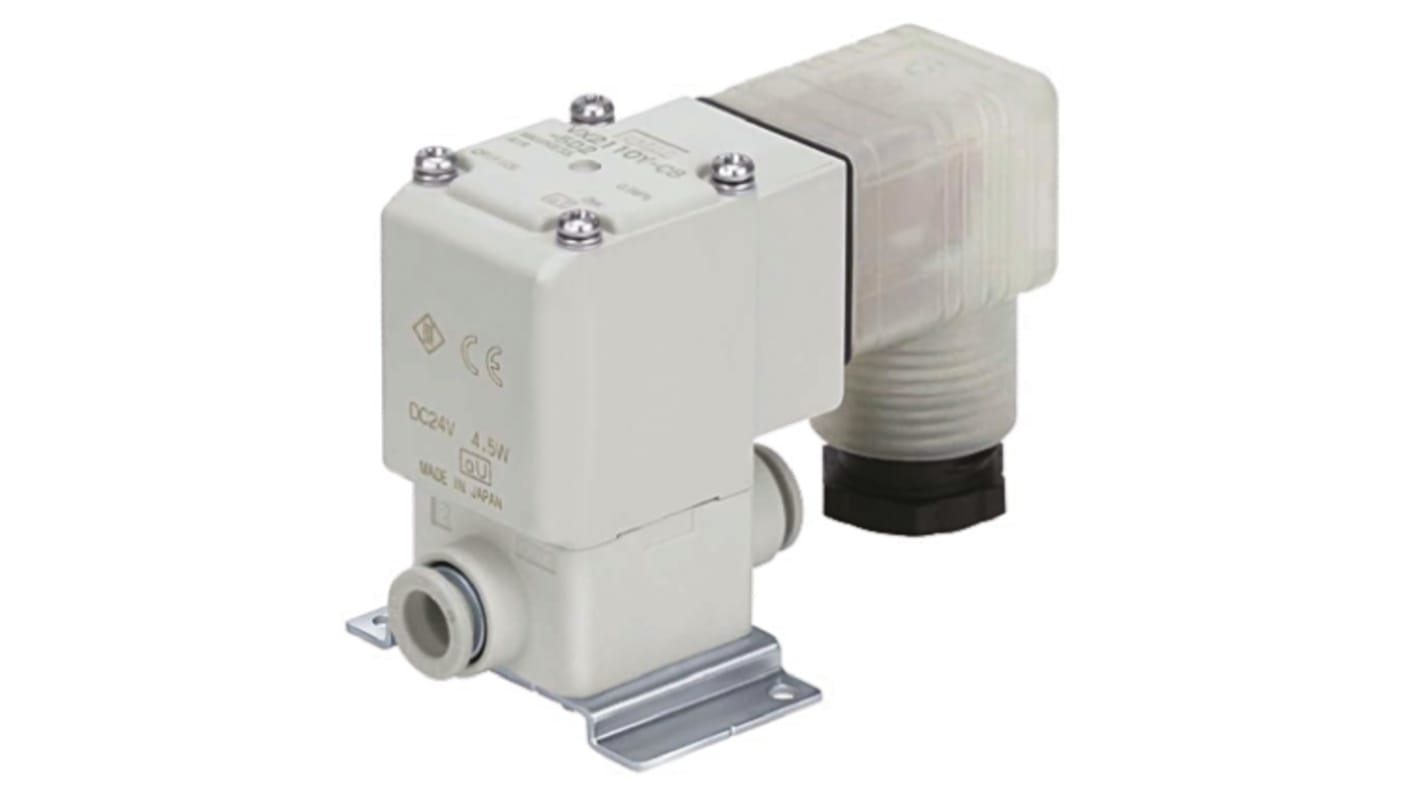

SMC VX21 Series Solenoid Valve, 24V DC Supply Voltage, 10 Bar Maximum Working Pressure - VX210HG

This solenoid valve is a direct-operated 2/2 way valve designed for efficient fluid control in various applications. The valve operates on a 24V DC supply and features a compact resin body with a 6mm push-fit connection. Capable of withstanding a maximum pressure of 10 bar and temperatures ranging from -20 °C to +60 °C, it is an ideal choice for air applications and other medium tasks.

Features & Benefits

• Designed for 24V DC operation to ensure compatibility with standard systems

• Compact size for easy installation in space-constrained environments

• Resin body construction providing durability and corrosion resistance

• High pressure capability up to 10 bar for robust performance

• Direct operation ensures quick response and reduced actuation time

• Push-fit connection for effortless tube connections and secure application

Applications

• Used for pneumatic control in manufacturing

• Suitable for air handling in automation systems

• Implemented in medium vacuum for precise control

• Utilised in water and oil transfer processes

What is the maximum operating temperature for this valve?

It can operate effectively within a temperature range of -20 °C to +60 °C.

How does the valve ensure a reliable seal under high pressure?

The resin body and built-in sealing mechanisms prevent leaks even at a maximum pressure of 10 bar.

Can this valve be used with oils and other liquids?

Yes, it is suitable for various media, including oils and water, provided the kinematic viscosity does not exceed 50 mm²/s.

What type of connection does this solenoid valve use?

It features a 6mm push-fit connection, making it compatible with standard tubing sizes for easy installation.

How can this valve enhance system responsiveness in pneumatic applications?

The direct operation mechanism provides quick actuation, resulting in faster response times for fluid control tasks.

选择全部	属性	值
	品牌	SMC
	电源电压	24 V dc
	产品类型	电磁阀
	端口数目	2
	预设阀门位置	常闭
	孔直径	2mm
	系列	VX21
	应用	中等真空, 水, 油, 蒸汽, 空气
	主体材料	树脂
	最大操作压力	2.0 Mpa
	最低工作温度	-20°C
	最高工作温度	60°C
	标准/认证	RoHS, IP65, UL94V-0
	危险区认证	否
	Distrelec Product Id	30402225

	选择全部
	品牌 SMC
	电源电压 24 V dc
	产品类型电磁阀
	端口数目 2
	预设阀门位置常闭
	孔直径 2mm
	系列 VX21
	应用中等真空, 水, 油, 蒸汽, 空气
	主体材料树脂
	最大操作压力 2.0 Mpa
	最低工作温度 -20°C
	最高工作温度 60°C
	标准/认证 RoHS, IP65, UL94V-0
	危险区认证否
	Distrelec Product Id 30402225

SMC 2通, VX210HG 电磁阀, 24 V dc电源, 树脂主体, 常闭预设阀门位置, VX21系列
