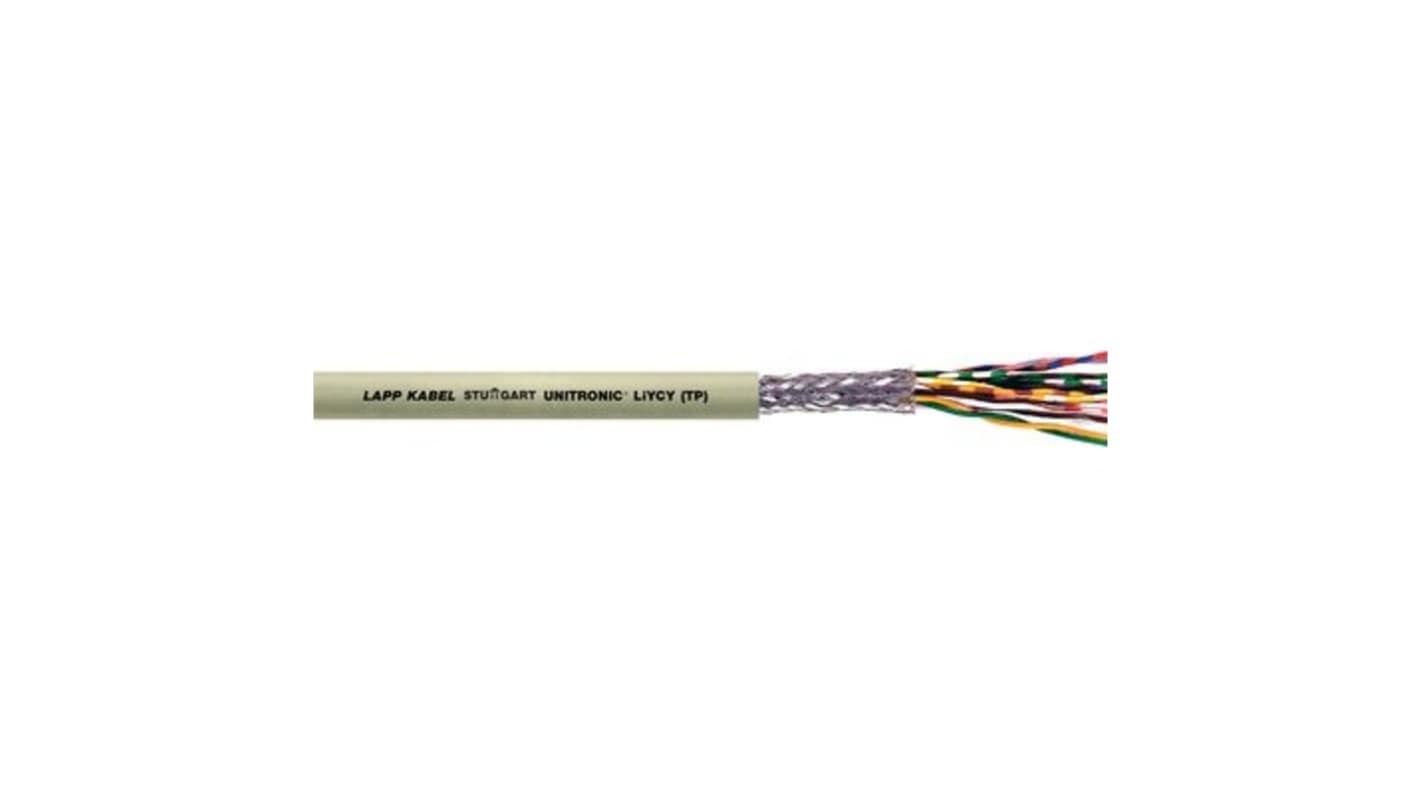

Lapp 8芯4对屏蔽线 0.5 mm²双绞线 数据电缆, 20 AWG, UNITRONIC系列, PVC灰色护套

来自 Lapp 的 Unitronic LiYCY (TP) 数据电缆通过经过反复考验的 VDE 0812 电缆开发得来。它们还可用作电子控制和信号线，用于计算机和电子控制器件。

此低频数据传输电缆具有屏蔽编织层，可最大程度减少电气干扰，使其特别适合在注重干扰信号的应用中使用。

Unitronic 电缆包含细线铜绞线，带 PVC 芯绝缘。它具有阻燃特性，适用于干燥或潮湿内部的各种应用。

特点和优势

• 芯成对绞合 (TP)
• 薄膜覆盖
• 编织护套由镀锡电线制成
• PVC 外层护套
• 阻燃性
• 工作温度（固定安装）：-40°C 至 +80°C
• 工作温度（偶而弯曲）：-5°C 至 +70°C

应用

此屏蔽低频 PVC 数据电缆特别适合在电子设备中发挥多功能用途，如：

• 计算机系统
• 电子控制设备
• 办公设备

附件

Lapp Unitronic 电缆应当与可匹配其功能的附件一起使用。因此提供了一系列易于安装的电缆固定头。

• 136-8515 是 M12 无卤 Skintop EMC 电缆固定头
• 136-8516 是 M16 无卤 Skintop EMC 电缆固定头
• 136-8517 是 M20 无卤 Skintop EMC 电缆固定头
• 136-8518 是 M25 无卤 Skintop EMC 电缆固定头
• 136-8519 是 M32 无卤 Skintop EMC 电缆固定头

This screened data cable features a twisted pair (TP) design, ideal for low-frequency data transmission. The cable consists of four pairs and has an outer sheath made from durable PVC, presenting a maximum operating temperature of +80°C and a minimum of -40°C. Its length of 100m provides ample flexibility for various installations.

• Flame retardant construction ensures safety compliance
• Screened to minimise electromagnetic interference
• Twisted pair design reduces crosstalk and enhances performance
• Outer diameter of 9.4mm allows for easy installation
• Rated for 1.5kV voltage ensures efficient data transfer
• High-quality copper conductors provide excellent conductivity

• Suitable for electronics in computer systems
• Ideal for electronic control equipment and office machines
• Effective in both dry and damp environments
• Utilised in instrumentation control systems

The ability to withstand temperatures from -40°C to +80°C ensures it operates effectively in diverse conditions, including both dry and damp settings.

The twisted pair construction significantly reduces crosstalk, making it ideal for maintaining data integrity, while the overall screening enhances its resistance to electromagnetic interference.

It adheres to IEC 60332-1-2 fire behaviour standards, ensuring compliance with safety regulations in its application.

The flame-retardant feature protects it from fire hazards, enhancing safety during use in various installations and environments.

The PVC sheath provides robust protection against mechanical damage and environmental factors, ensuring longevity and reliability in applications.
