The MIC5233 is a 100mA, highly accurate, low dropout regulator with high input voltage and ultra-low ground current. This combination of high input voltage and low ground current makes the MIC5233 ideal for multi-cell Li-Ion battery systems.A μCap LDO design, the MIC5233 is stable with either ceramic or tantalum output capacitors. It only requires a 2.2μF capacitor for stability.Features of the MIC5233 include enable input, thermal shutdown, current limit, reverse battery protection, and reverse leakage protection.

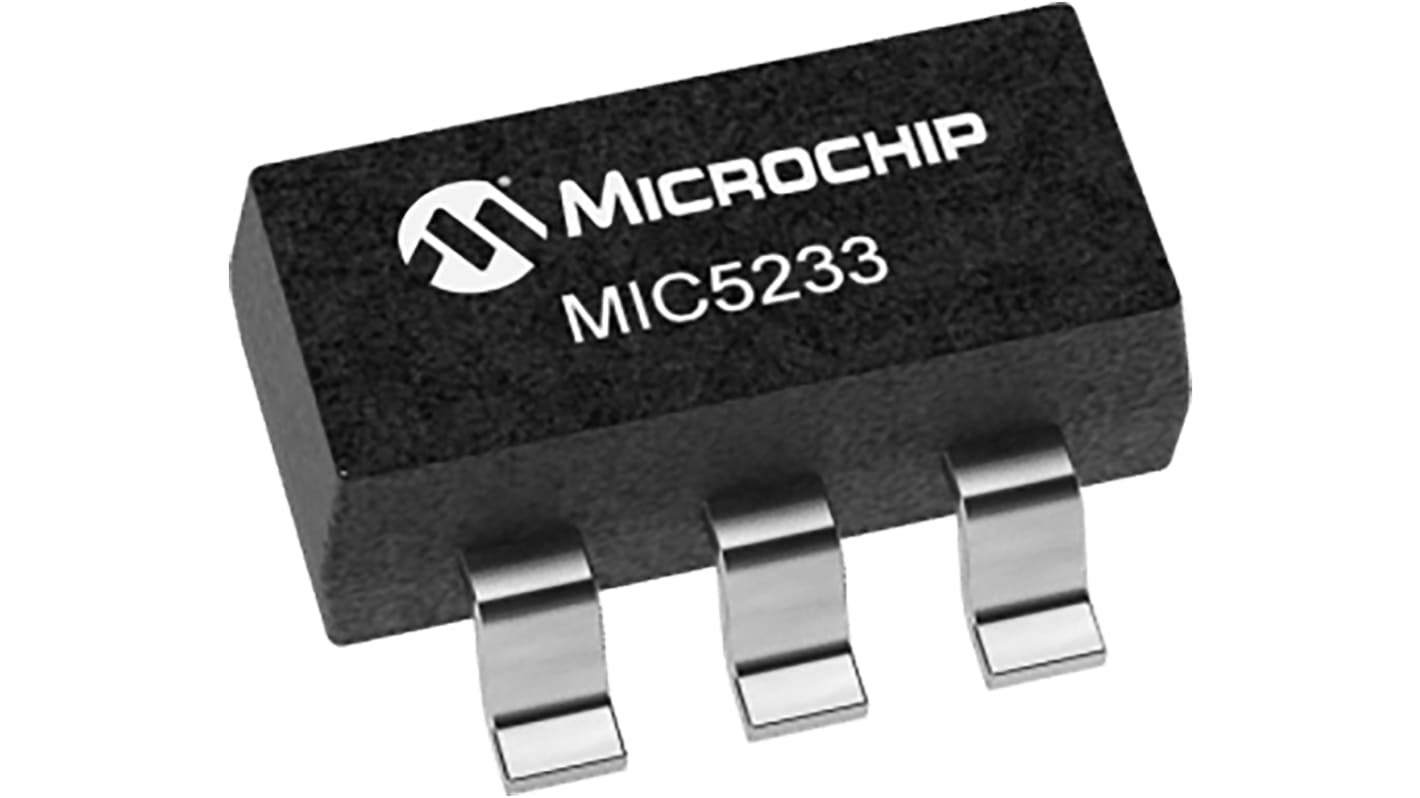

Wide input voltage range: 2.3V to 36V Ultra-low ground current: 18μA Low dropout voltage of 270mV at 100mA High output accuracy of ±2.0% over temperature μCap: stable with ceramic or tantalum capacitors Excellent line and load regulation specifications Zero off-mode current Reverse battery protection Reverse leakage protection Thermal shutdown and current limit protection IttyBitty® SOT-23-5 package
