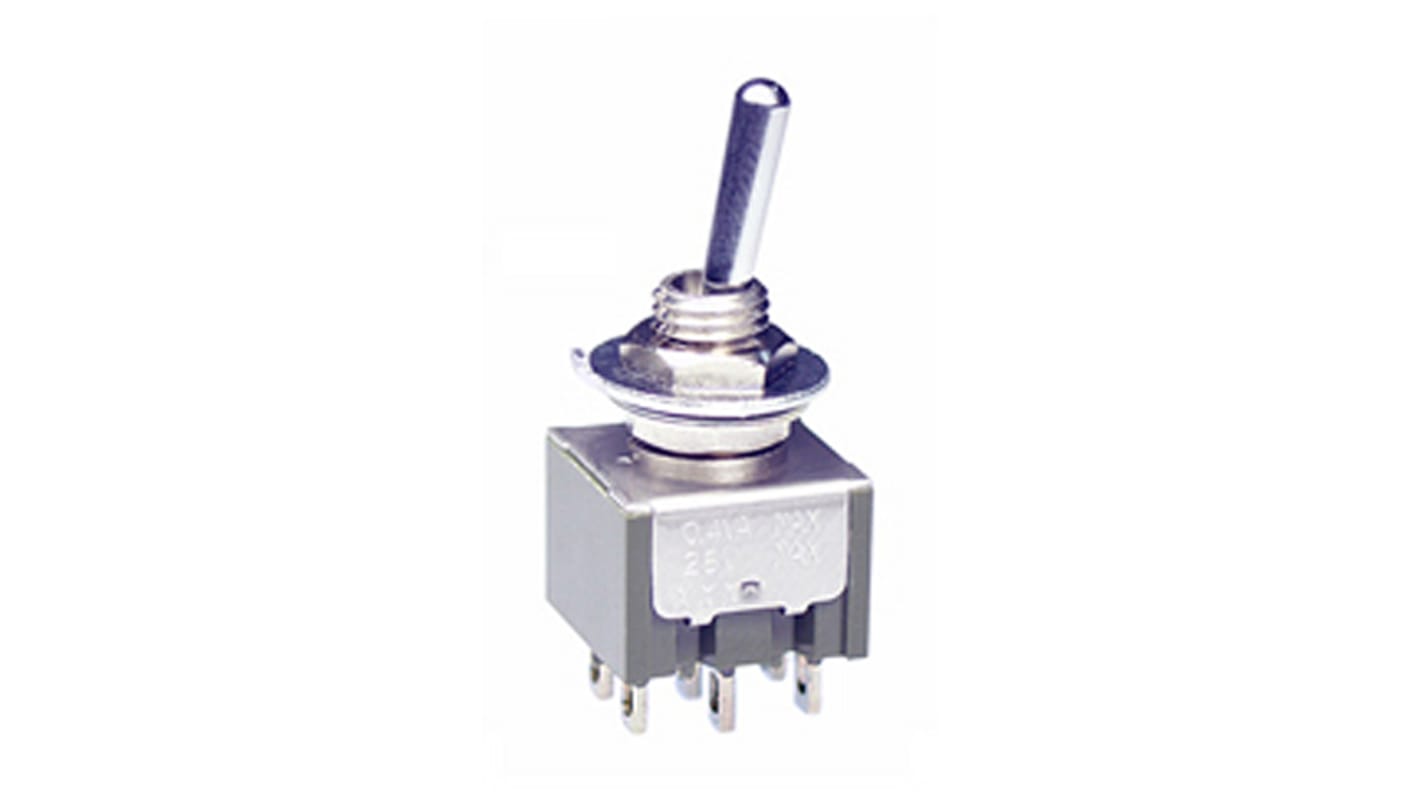

NKK Switches 钮子开关, 双刀双掷, 开-关-开操作, 3 A @ 30 V 直流，6 A @ 125 V 交流, PCB安装, 焊接端子, 面板切口12.5 (Dia.)mm, IP67
- RS 库存编号:
- 124-5934
- 制造商零件编号:
- M2023WBW01
- 制造商:
- NKK Switches
可享批量折扣
小计（1 件）*
¥83.80
(不含税)
¥94.69
(含税)
正在逐步停售
- 最终 2 个，准备发货
单位 | 每单位 |
|---|---|
| 1 - 4 | RMB83.80 |
| 5 - 19 | RMB81.28 |
| 20 - 49 | RMB78.77 |
| 50 - 99 | RMB77.09 |
| 100 + | RMB75.42 |
* 参考价格
- RS 库存编号:
- 124-5934
- 制造商零件编号:
- M2023WBW01
- 制造商:
- NKK Switches
产品技术参数
产品技术参数资料
法例与合规
产品详细信息
通过选择一个或多个属性来查找类似产品。
选择全部 | 属性 | 值 |
|---|---|---|
| 品牌 | NKK Switches | |
| 触点配置 | 双刀双掷 | |
| 开关操作 | 开-关-开 | |
| 触点额定电流 | 3 A @ 30 V 直流，6 A @ 125 V 交流 | |
| 安装类型 | PCB | |
| 端子类型 | 焊接 | |
| IP 防护等级 | IP67 | |
| 面板切口直径 | 12.5mm | |
| 执行器长度 | 20mm | |
| 执行器材料 | 镀铬 | |
| 额定电压 | 30 V dc, 250V 交流 | |
| 触点材料 | 镀银 | |
| 触点电阻 | 10mΩ | |
| 面板切口大小 | 12.5 (Dia.)mm | |
| 机械寿命 | 50000Operations | |
| 工作温度范围 | -30 → +85°C | |
| 符合标准 | IEC 60529 | |
| 最高工作温度 | +85°C | |
| 最低工作温度 | -30°C | |
| 选择全部 | ||
|---|---|---|
品牌 NKK Switches | ||
触点配置 双刀双掷 | ||
开关操作 开-关-开 | ||
触点额定电流 3 A @ 30 V 直流，6 A @ 125 V 交流 | ||
安装类型 PCB | ||
端子类型 焊接 | ||
IP 防护等级 IP67 | ||
面板切口直径 12.5mm | ||
执行器长度 20mm | ||
执行器材料 镀铬 | ||
额定电压 30 V dc, 250V 交流 | ||
触点材料 镀银 | ||
触点电阻 10mΩ | ||
面板切口大小 12.5 (Dia.)mm | ||
机械寿命 50000Operations | ||
工作温度范围 -30 → +85°C | ||
符合标准 IEC 60529 | ||
最高工作温度 +85°C | ||
最低工作温度 -30°C | ||
- COO (Country of Origin):
- JP
NKK 开关 - M 系列防水扳钮开关
The NKK M Series of waterproof toggle switches have distinctive characteristics. They are of superb quality and construction design. The design prohibits entry of harmful particles that may otherwise compromise the lever operation.
The polished chrome-plated actuator adds to the sleek design. This paired with the waterproof boot at the base of the toggle further ensures protection against wet environments. The NKK M Series are functional and reliable and have an inner o-ring and external rubber washer sealing the switch to achieve IP67 of IEC60529 Standards (dust tight and water protected for temporary immersion).
The polished chrome-plated actuator adds to the sleek design. This paired with the waterproof boot at the base of the toggle further ensures protection against wet environments. The NKK M Series are functional and reliable and have an inner o-ring and external rubber washer sealing the switch to achieve IP67 of IEC60529 Standards (dust tight and water protected for temporary immersion).
特点和优势
防水靴
抛光镀铬执行器
防尘和防水保护
极佳的质量和结构设计
功能强大且可靠
