RS PRO 深度尺, 精确度90° ±15 min, 钢, 测量至134mm

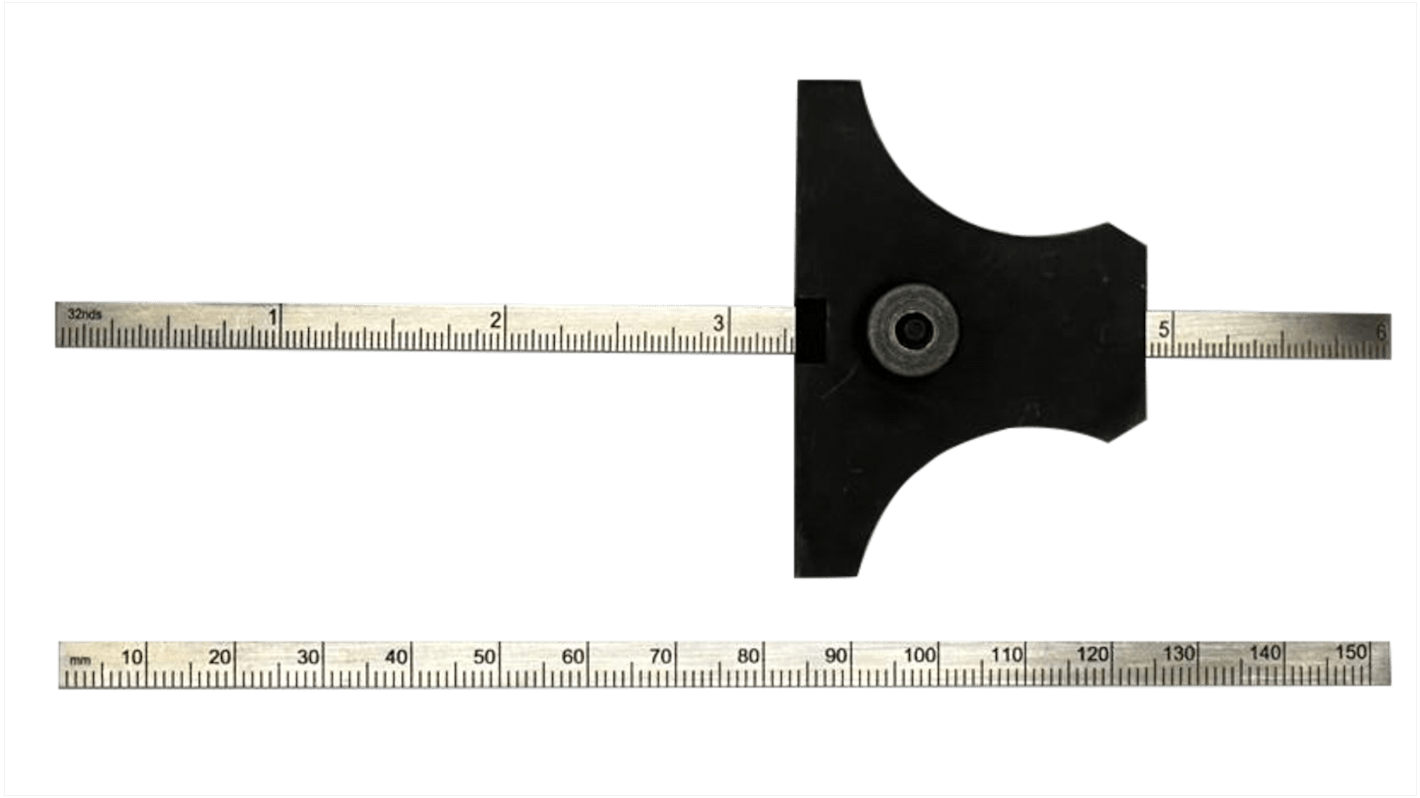

RS PRO 150 mm Imperial/Metric Depth Gauge

Achieve accurate measurements with this RS PRO depth gauge. This handheld device is used to determine the depth of a particular feature or object. This depth gauge utilises both imperial and metric system of measurement to quantify depth.

Features and Benefits

• Analogue display type


• Imperial/Metric


• Hardened steel material


• Maximum measurement of 150 mm


• Weight of 47 g

Specification

• Base measurement: 2.5 in. wide x 1/ 8 in. thick


• Top surface: 1in. wide x 1/8 in. thick


• Blade width: 5.2 mm x 1 mm


• Depth rule graduated both sides


• Front face graduated in 1mm steps


• Rear face graduated in 1/32 in. steps


• Squareness accuracy of Rule to Base: 90˚ ±15 min

You May Also Need

• RS PRO 150 mm Metric Depth Gauge – RS stock no: 274-1083

Applications

• Engineering


• Machining


• Woodworking
