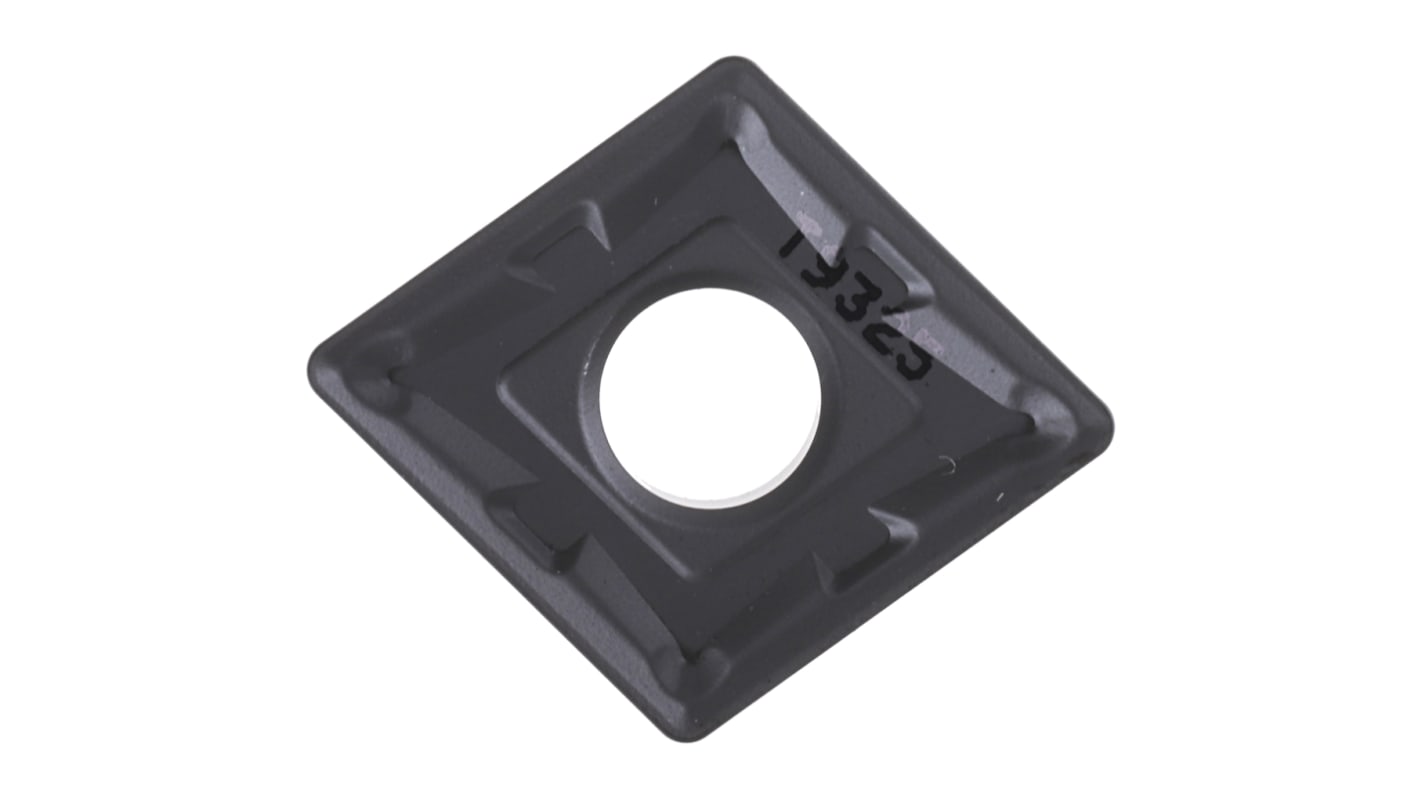

Pramet 的这款车床刀片是一种高质量的菱形可转位刀具,专为精密加工而设计。它性能可靠,经久耐用。该刀片适用于各种车床应用,可提高加工过程的精度和效率。
• 独特的钻石形状设计,可实现精确切割
• 可转位功能便于更换刀具
• 确保高性能
• 接近角为 95 度,可获得最佳加工效果
• 孔径 5.16 毫米,用途广泛
• 高度为 4.76 毫米,可高效清除材料
• 长度为 12.9 毫米,可在加工操作过程中保持稳定
• 与 DCLNR 12 车床配合使用的理想选择
• 适用于要求高精度的车床应用
• 可用于机械行业的车削操作
它专为精密切割和加工过程而设计,是各种应用的理想之选。
是的,这种车床刀片与 DCLNR 12 车床兼容,确保加工操作的无缝集成。
这种刀片采用独特的钻石形状设计,可进行精确切割,从而实现高质量的加工效果。
较高编号 = 较坚硬/抗冲击性
较低编号 = 较硬/耐磨
TU5525 is a truly universal tuning grade suitable for cutting Steel, Stainless Steel, Cast Iron and heat resistant Aaloys. There is no need to hold stock of a multitude of grades reducing the cost of inventory and time wasted changing inserts. One insert for almost all applications.
If insert breakage or chipping of the cutting edge is a problem TP2135 may be the answer. Some application do not offer the cutting edge a constant cutting surface whether from a non round part or holes in the part this constant impact on the cutting edge can lead to insert failing. TP2135 is designed to take higher impact loads giving a more secure cutting edge, suitable for cutting steel, stainless steel and heat resistant alloys.
属性 | 数值 |
---|---|
车床零件 | 车床插件 |
接近角 | 95° |
系列 | CNMG |
适用于 | Dcl非道路 12. |
长度 | 12.9mm |
高度 | 4.76mm |
