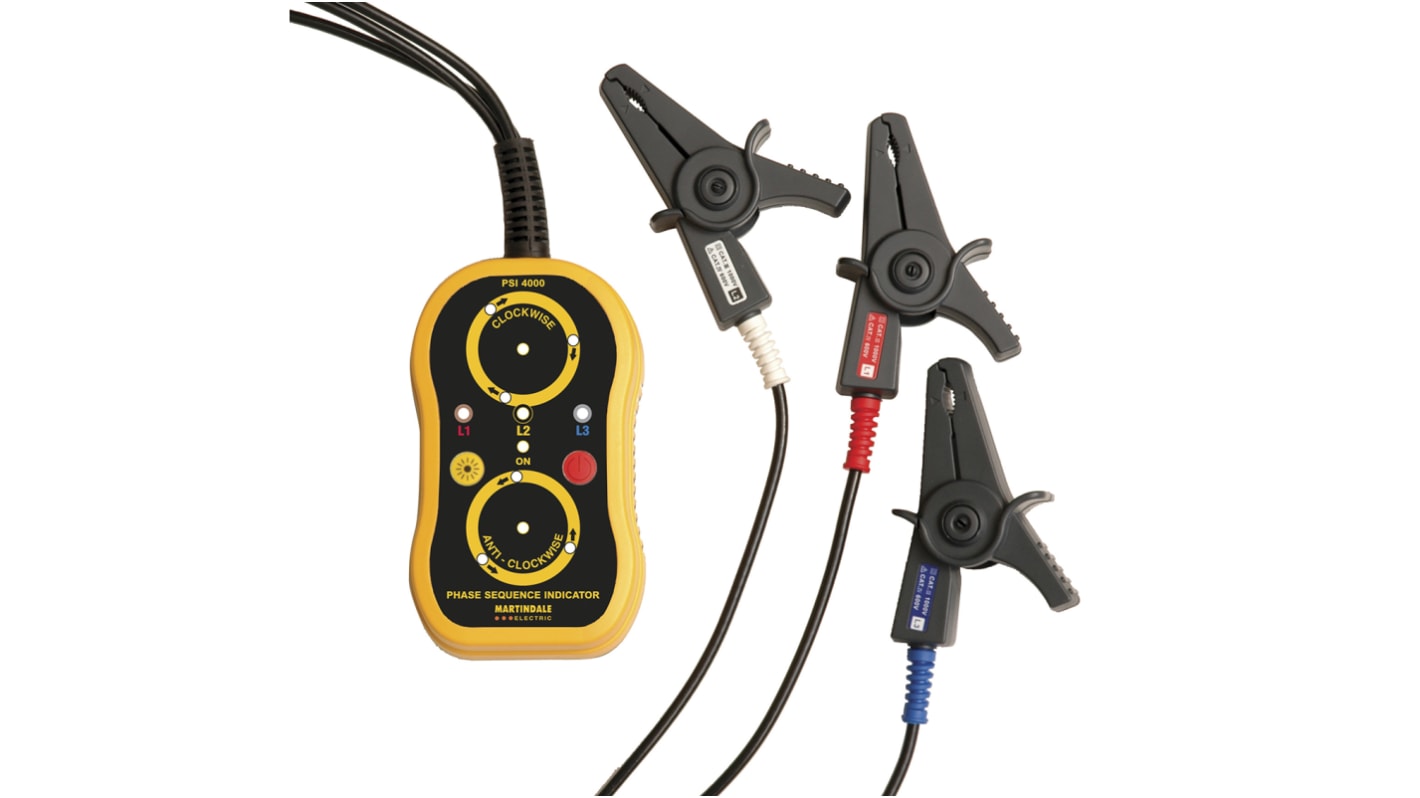

The Martindale phase sequence indicator works on a principle of static induction with voltage rating ranges between 150V and 1000V AC (phase to earth). It includes 4xAA batteries, a soft carry case and instruction manual. This indicator measures inductive crocodile clips. This method increases the safety of the user, whilst the bright LEDs give a clear indication of either clockwise or anti-clockwise phase rotation.
Supplied with
4 x AA batteries, soft carry case and instruction manual
Bright LED and buzzer indication of live phases and sequence
Class II, double insulation
High-quality colour coded clips
Input frequency ranges between 45Hz and 65Hz
Non-contact for improved safety and ease of use
Operating temperature ranges between -10°C and 50°C
Positive indication for clockwise rotation
Drives
Electrical systems
Feed motors
CE
EN 61326-1
EN 61557-1
EN61010-1
EN61557-7
CAT III 1000V, CAT IV 600V
属性 | 数值 |
---|---|
连接类型 | 鳄鱼夹 |
过电压类别 | CAT III 1000V, CAT IV 600V |
安全类别 | CAT III 1000 V, CAT IV 600 V |
非接触式 | Non Contact |
电流消耗 | 15mA |
电池类型 | AA |
电源 | 电池 |
尺寸 | 118 x 69 x 38mm |
重量 | 370g |
高度 | 38mm |
长度 | 118mm |
最大频率 | 65Hz |
