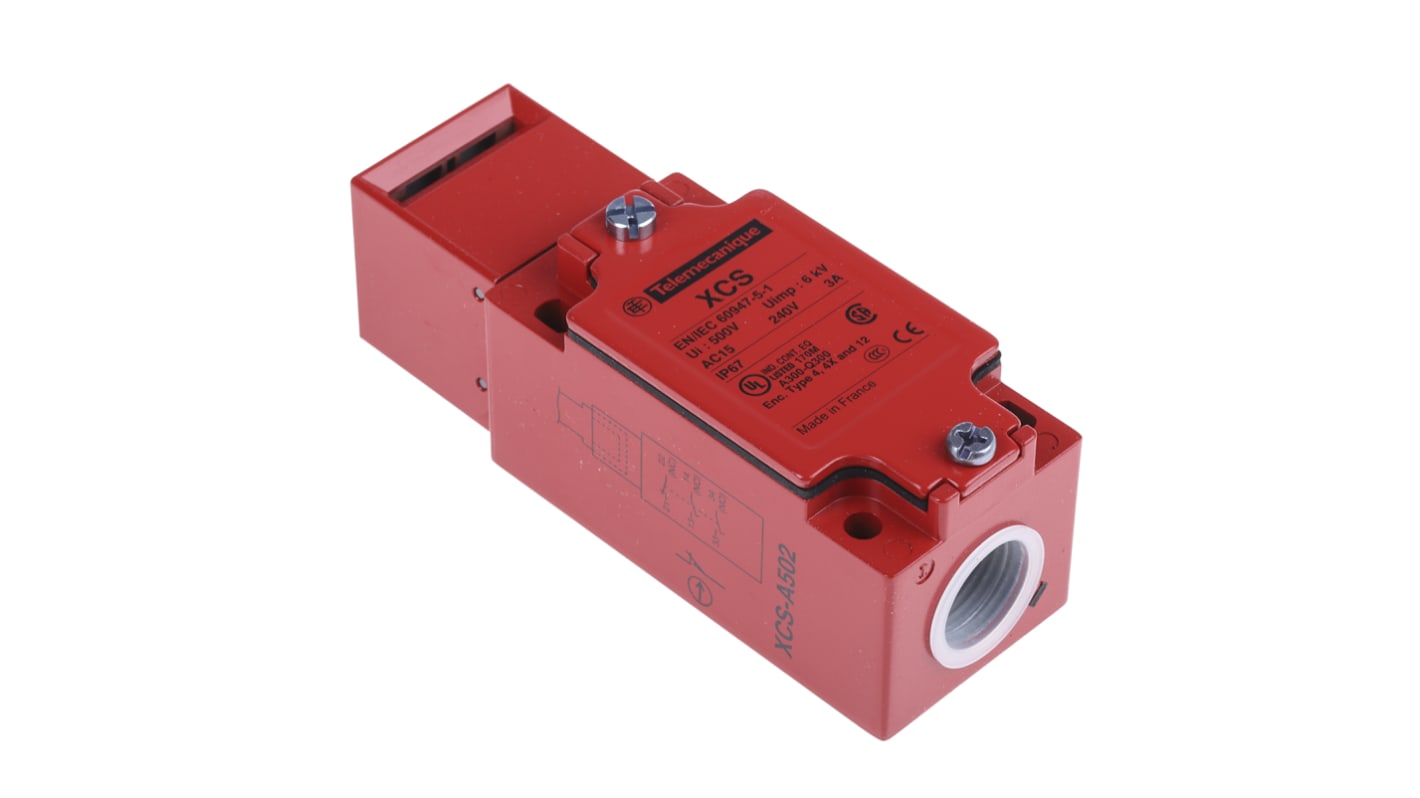

Telemecanique Sensors 安全门开关, XCSA系列, 键控锁, 2常开/1常闭
- RS 库存编号 263-3595
- 制造商零件编号 XCSA502
- 制造商 Telemecanique Sensors
3 个安全触点
2 种型号的开关内带/不带执行器锁定的产品
只能与需要单独订购的专用执行器共同使用
符合 EN1088, EN60204 标准
标配为 3 个正向打开触点（在护罩开口处）
转塔头可通过 90 度步进旋转 360 度，提供 8 个执行器入口点
大负荷 DIN 样式，防护级别达 IP67 级
注
所有开关都需要执行器，请单独订购
Telemecanique Sensors Rotating Hinge Switch
The Telemecanique sensors XCSA series interlock switch has 1NC/2NO switch configuration. It has a maximum voltage of 240VAC/250VDC and a maximum current of 6A. The housing material is zamak and it is available in a screw connection type.
Features and Benefits
• 3 positive opening contacts as standard (on guard opening)
• Key operated lock enables positive locking of the guard
• Optional version with orange LED to indicate guard open/closed
• Heavy duty metal DIN style
• Turret heads can be rotated through 360° in 90 steps
• 8 actuator entries and 1 tapped entry
• 20N minimum operating force for positive opening
• Productivity is increased due to the third contact dedicated to diagnostics
• Operating temperature ranges between -25°C and 70°C
Certifications
• IP67 rated
• EN1088
• EN60204
• EN/IEC 60947-5-1
• CSA C22.2 No 14
• EN/ISO 12100
• EN/IEC 60204-1
• EN 1088/ISO 14119
• UL 508
标准
Conforms to EN1088, EN60204.
互锁开关
| 属性 | 数值 |
|---|---|
| 锁样式 | 键控 |
| 正常状态配置 | 2常开/1常闭 |
| 最大交流电压 | 240V |
| 最大直流电压 | 250V |
| 外壳材料 | 锌合金 |
| 范围 | Preventa |
| IP 防护等级 | IP67 |
| 头方向数目 | 8 |
| 系列 | XCSA |
